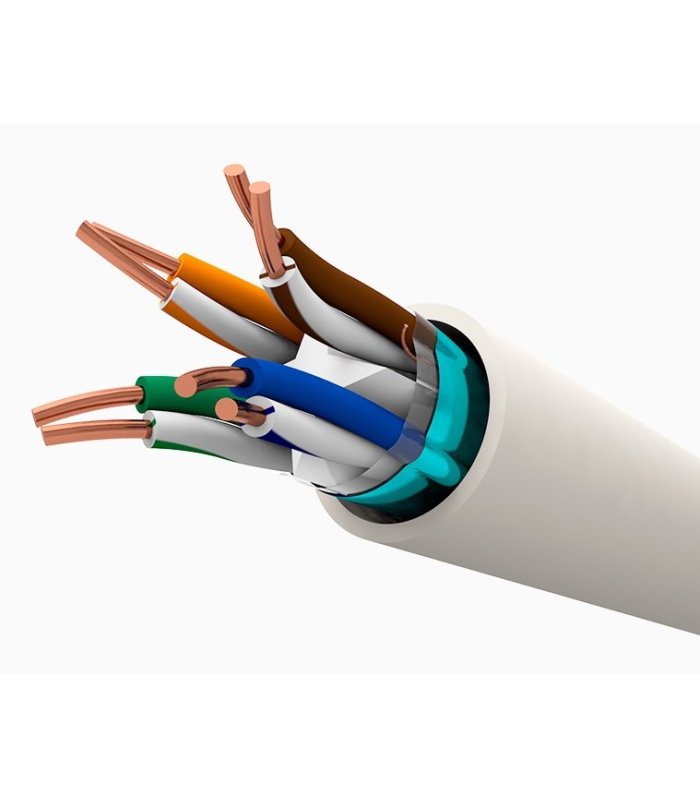

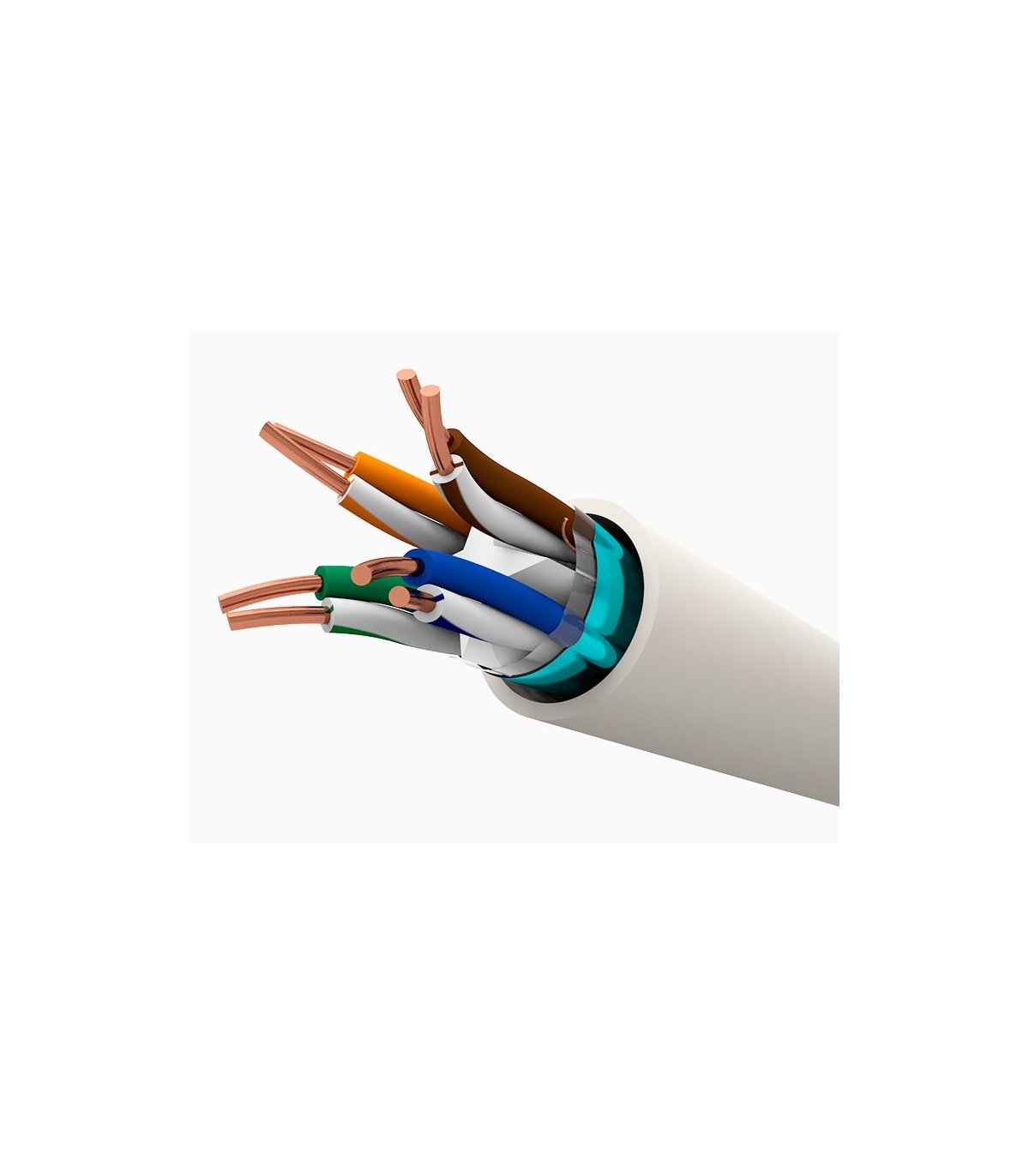

Cable CAT6 FTP 305m LSZH Rigido COBRE 100%

Cable de red RJ45 CAT.6 FTP Rígido AWG24, 305 M cobre 100% LSZH

Cubierta color Blanco CPR DCA

Suministro en bobina de madera

TECHNICAL SPECIFICATIONS:

Conductor Bare copper : 0.57±0.01 mm

Insulation HDPE : 1.10±0.05 mm

Identification of pairs

1 pair                                            Blue - White / Blue

2 pair                                            Orange - White / Orange

3 pair                                            Green - White / Green

4 pair                                            Brown - White / Brown

Filler                                             PE

Drain                                            Copper Clad Steel : 0.50±0.01 mm

Shield                                           Polyester Tape/AL Foil

Ripcord                                        Yes

Sheath                                         LSZH

Color                                            White

Bending radius                           ≥ 8 x Diameter (mm) Installation

Storage temperature               -15℃—+70℃
